Fabmatics Launches Test Wafer Center: A Game-Changer in Test Wafer Management for Semiconductor Fabs

Fabmatics

Dec 2, 2024 2:48:14 PM

Fabmatics GmbH, a leader in semiconductor automation solutions, is proud to introduce the Test Wafer Center (TWC) , an innovative and fully automated solution designed to transform test wafer logistics for semiconductor fabs. As fabs face a growing need for efficiency, the TWC offers a way to centralize and automate the handling, storage, and kitting of test wafers — essential non-product wafers that play a pivotal role in process control, equipment qualification and conditioning.

Test Wafers: A Critical Yet Underestimated Component in Semiconductor Production

Test wafers make up a surprisingly significant share of fab wafer inventories, often ranging between 25-50% of total wafers. Managing these wafers, each with unique handling requirements, is complex, and manual handling often risks productivity loss and operational downtime. The TWC addresses these challenges by automating the process, ensuring test wafers are ready exactly when needed.

The Test Wafer Center (TWC): Setting a New Standard in Automated Test Wafer Life Cycle Management

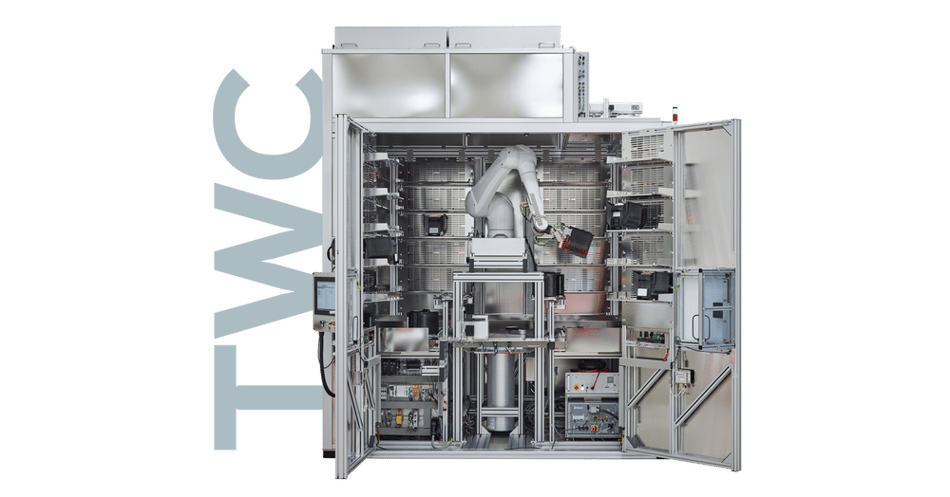

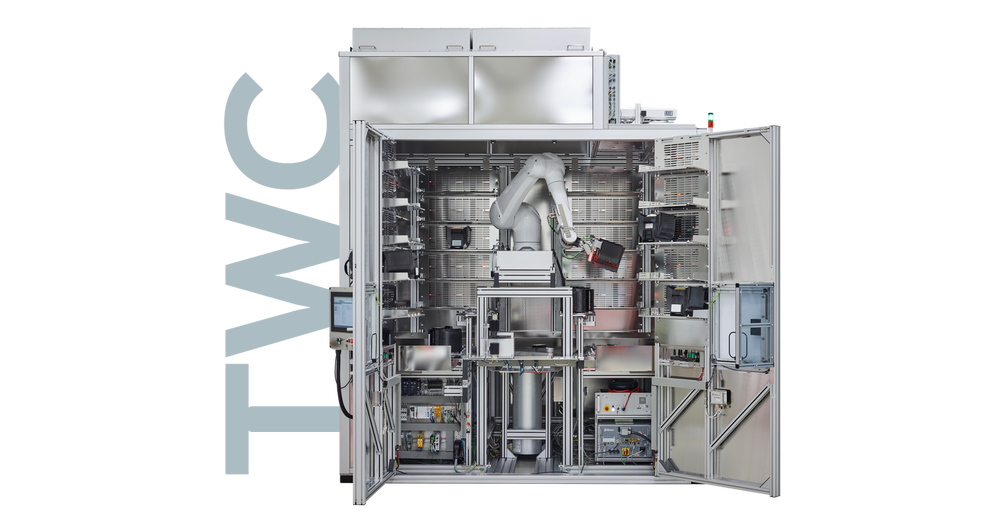

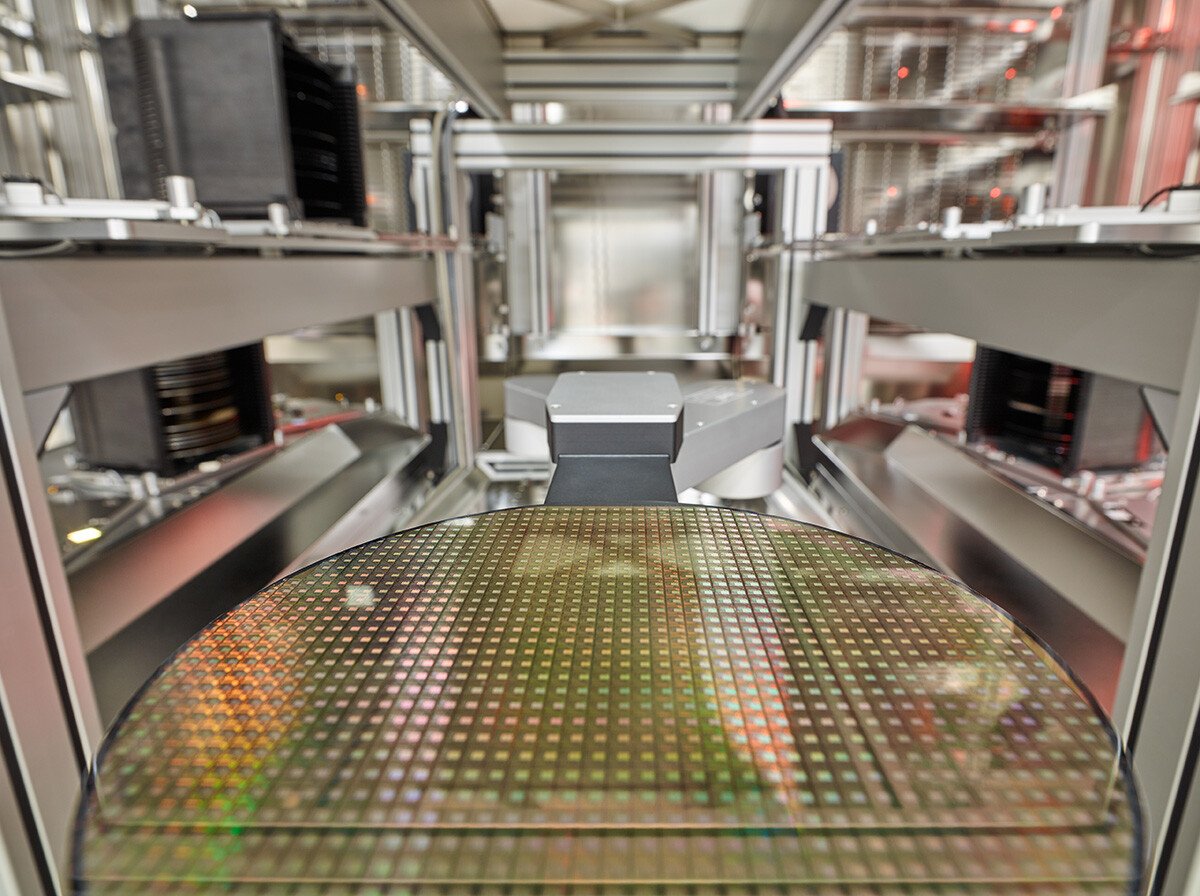

Fabmatics’ TWC is built to handle the full lifecycle of test wafer lots, from kitting and just-in-time delivery to de-kitting and storage. With a flexible layout accommodating up to 93 storage bins and 14 material handling points, the TWC is ideal for dynamic fab environments. It offers complete remote control, enabling fabs to determine timing and contents of test wafer lots with precision and reliability.

Key Features and Benefits

Automated Efficiency
By fully automating the kitting, de-kitting, and staging of test wafers, the TWC improves both speed and traceability, reducing manual carrier handling and freeing up transport resources in AMHS systems. This just-in-time approach ensures that test wafers are always available, when needed, helping fabs to maintain high productivity.
ISO 3 Cleanliness and Material Protection

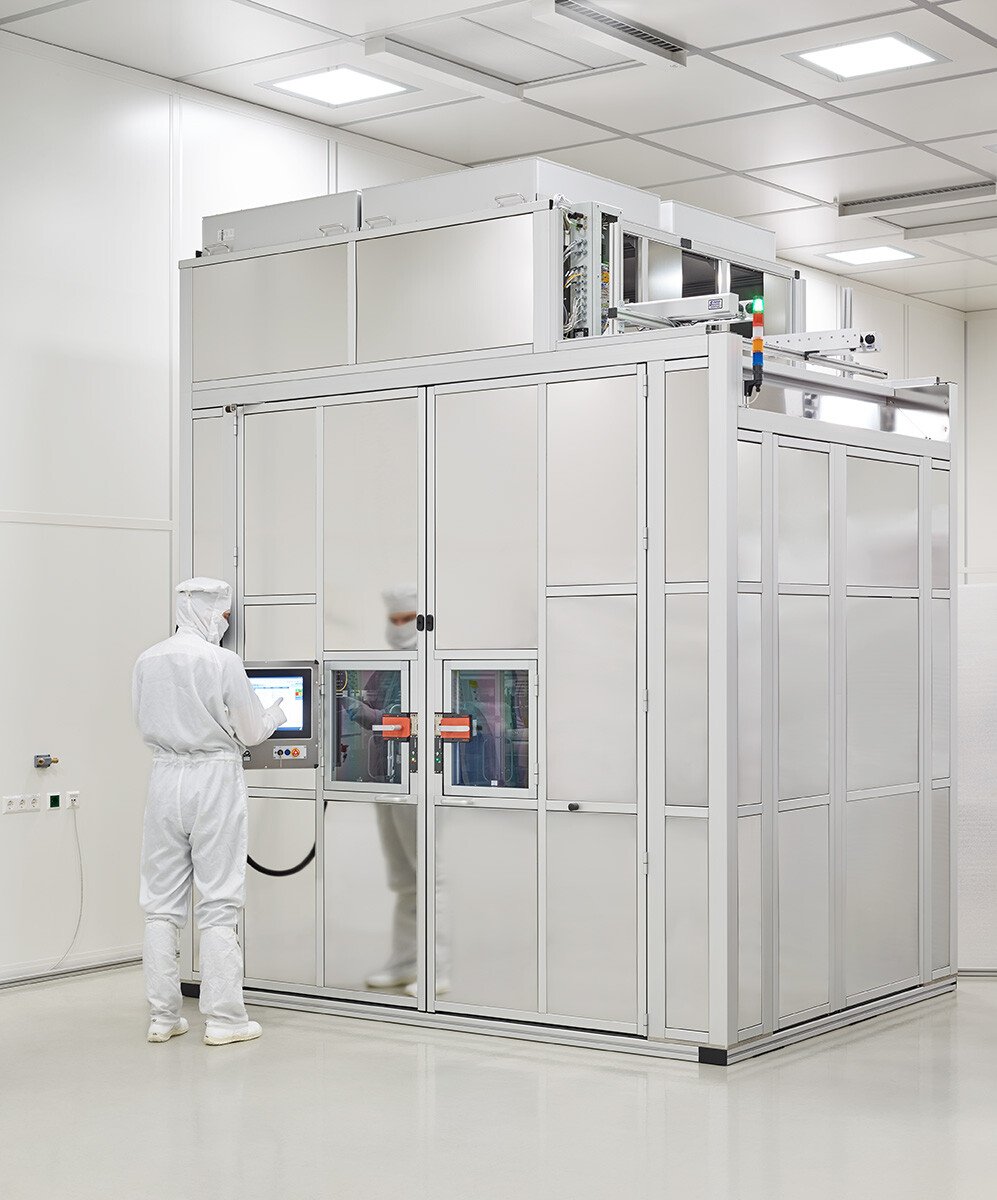

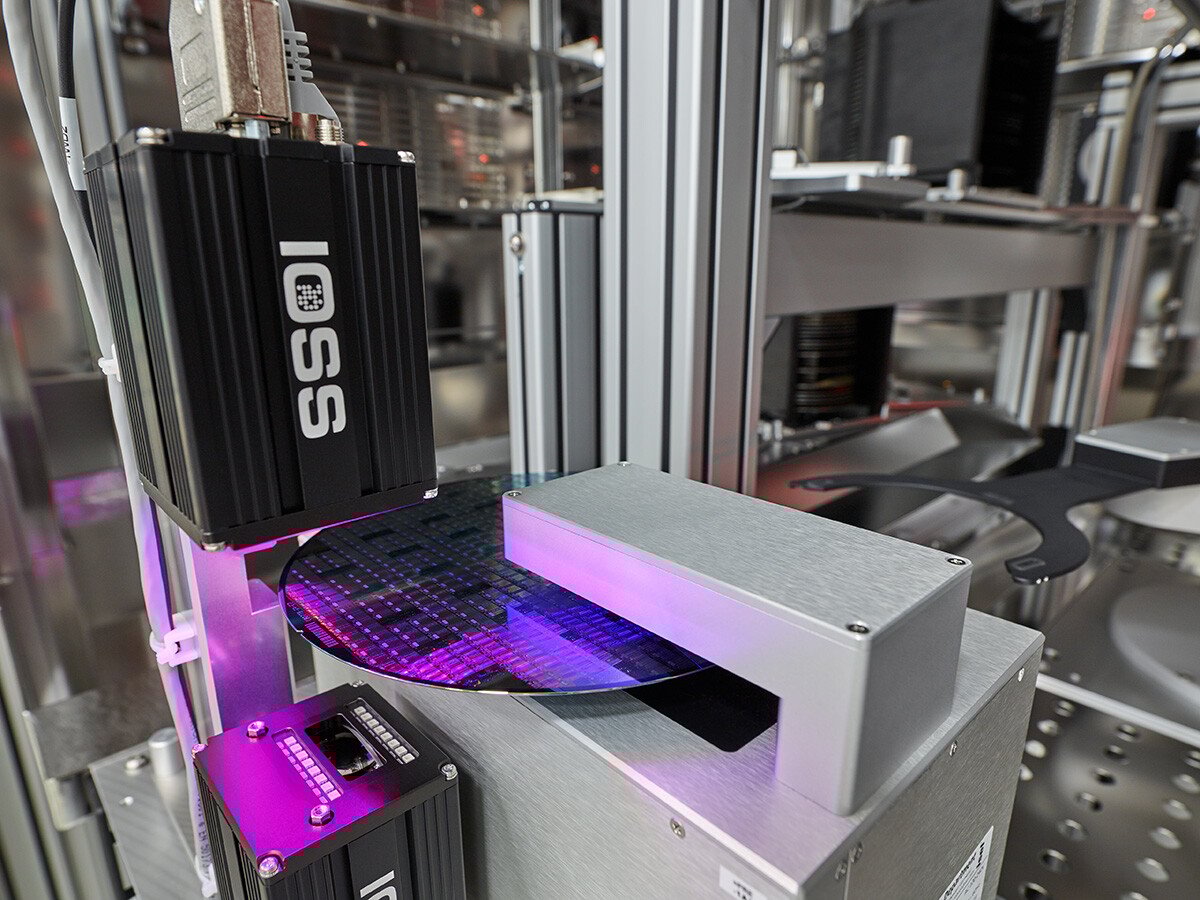

Operating within an ISO 3 mini-environment, the TWC’s ultra-clean design is ideal for sensitive wafer handling. The system incorporates advanced error detection, such as identifying cross-slotting and double-slotting, and prevents data inconsistency (e.g. missing or incorrect wafers). With these controls fabs can ensure process integrity and high product quality standards.
Resource Optimization & Advanced Traceability

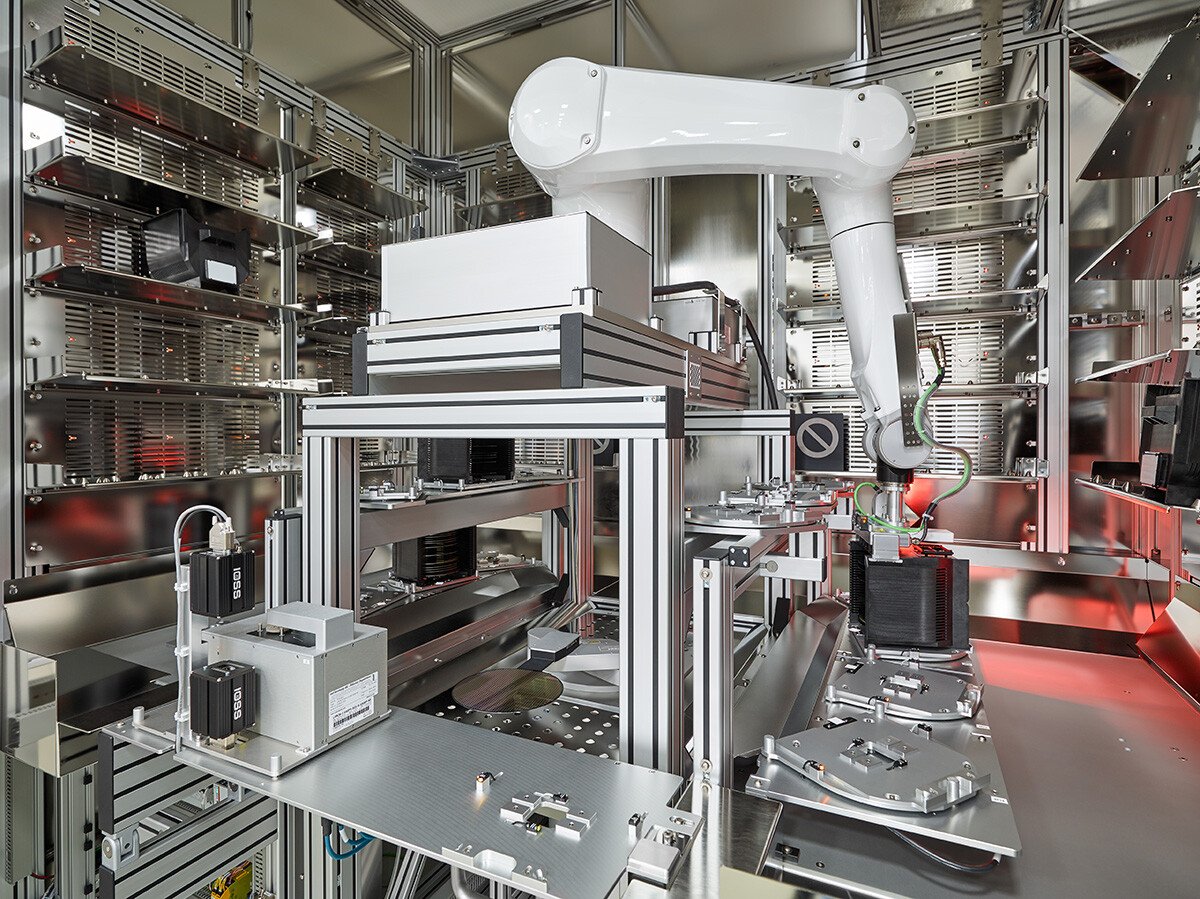

With features such as SECS II host communication, camera-based robot routing, and automated error recovery, the TWC enhances equipment effectiveness and simplifies maintenance. It provides a complete wafer history for tracking and accountability, following SEMI E90 standards, making fab resource management smarter and more efficient.
Compact Design for Optimal Cleanroom Space Utilization
The TWC’s centralized management replaces scattered handling tools, leaving more valuable cleanroom space for value-adding operations. Its compact design supports up to 93 storage bins and 14 handling locations, fitting seamlessly into tight spaces and allowing flexible installation options, including wall or corner placement.

Automation: Time for a new Benchmark in Test Wafer Management

By implementing the TWC, fabs are not only acknowledging the importance of test wafers but also taking a decisive step toward automating this critical area of production. Test wafer handling has long remained a manual process, but it’s time to elevate it to the standards of modern semiconductor manufacturing — just as has been done for WIP environments over recent years.

Fabmatics is eager to prove how automated test wafer management pushes fabs to break the shackles of legacy manual test wafer operation.
